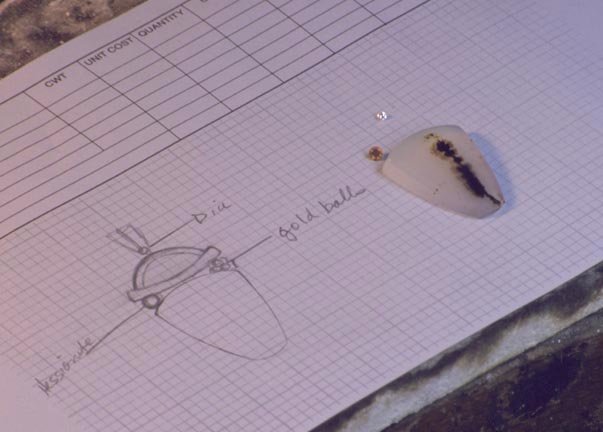

Step 01
Step 01
A pendant in the making: bezel-set agate and hessonite garnet, textured gold top with gold balls, diamond-accented bail.
Step 02
Step 02

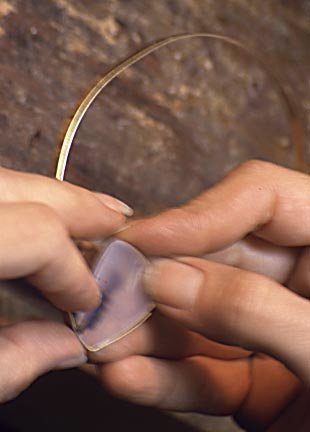

Wrapping a strip of gold around the stone to form the bezel.

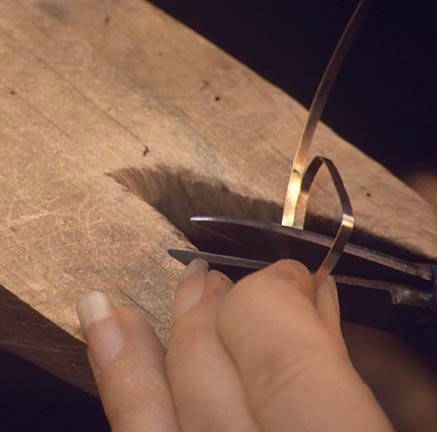

Step 03
Step 03
Trimming and soldering the bezel.
Step 04
Step 04

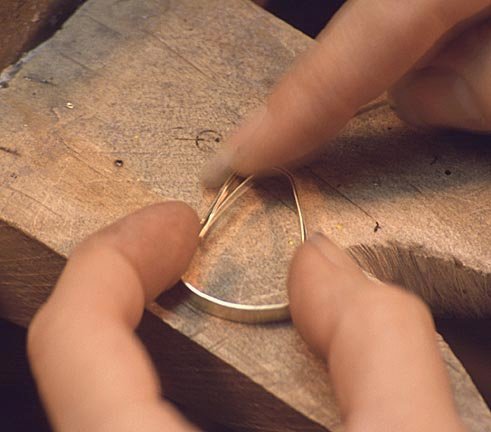

Forming an insert for the bezel.

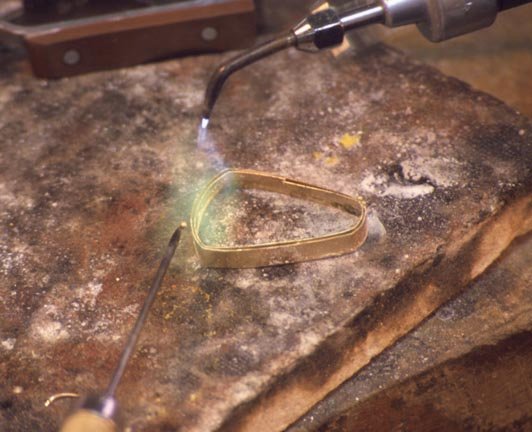

Step 05
Step 05
Joining bezel and insert.

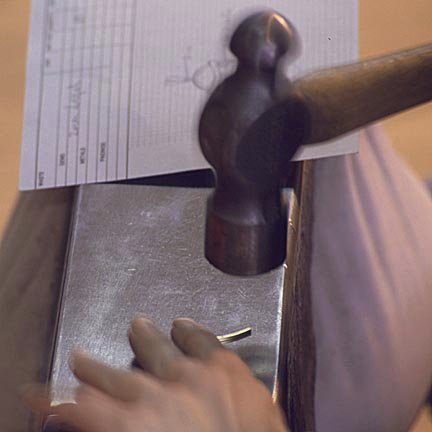

Step 06
Step 06
Forging gold wire for the top.

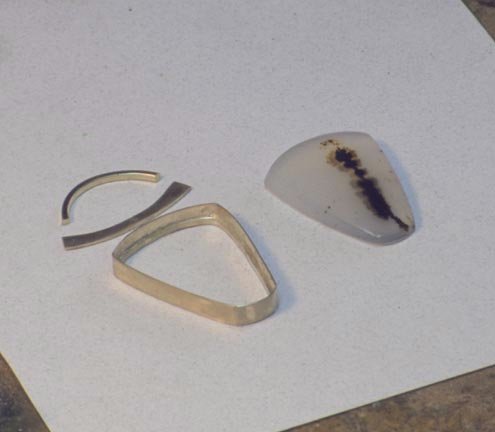

Step 07
Step 07
Assembling the pieces.

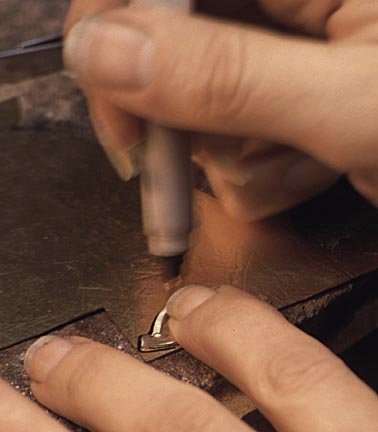

Step 08
Step 08
Using the soldered top as a pattern for the textured gold.
Step 09
Step 09

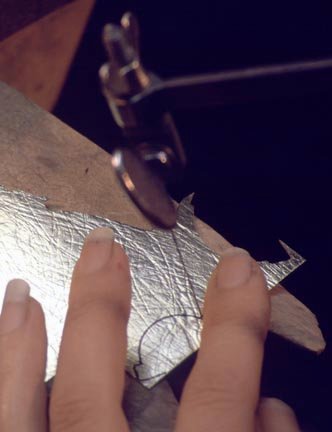

Cutting out the textured gold.

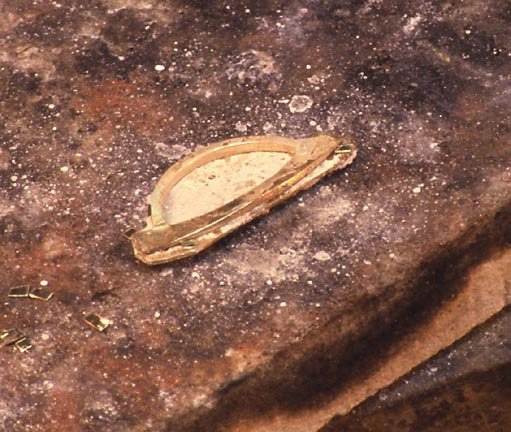

Step 10
Step 10
Laying out solder.
Step 11
Step 11

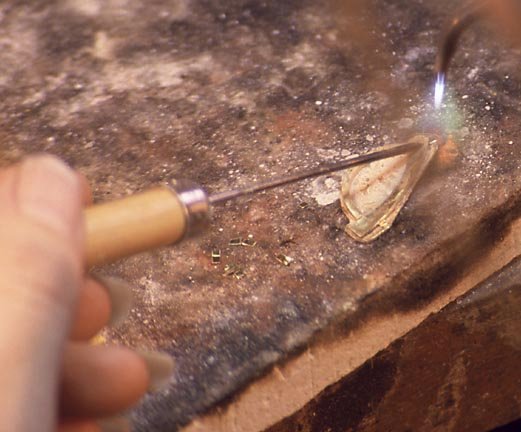

Soldering the textured gold to the frame.
Step 12
Step 12
Trimming the excess with a saw.

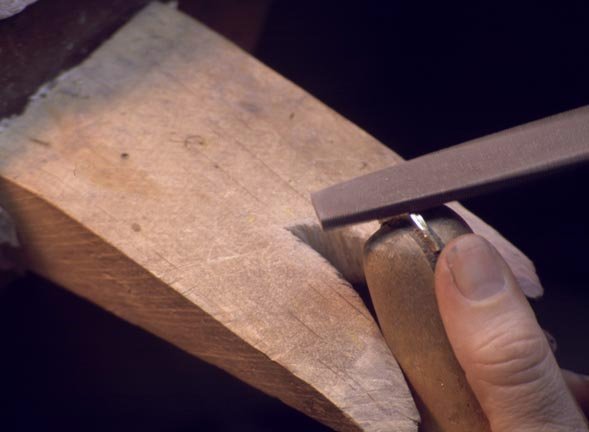

Step 13
Step 13
Smoothing the finished top with a file.
Step 14
Step 14

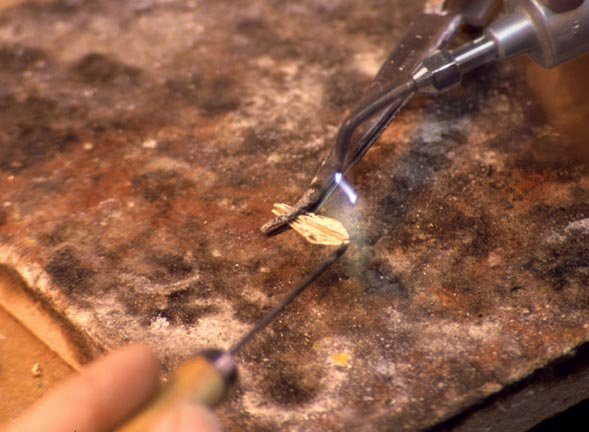

Soldering a decorative wire to the bail.

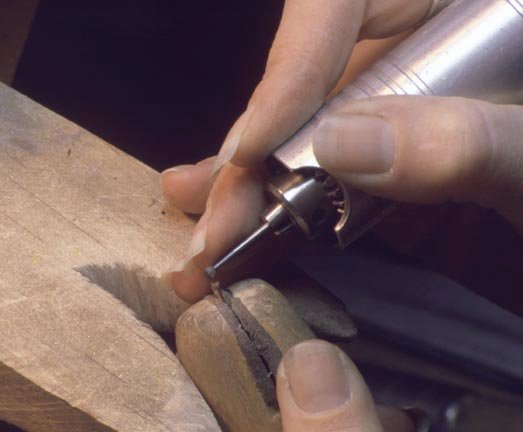

Step 15
Step 15
Using a bur to create a seat for the diamond.

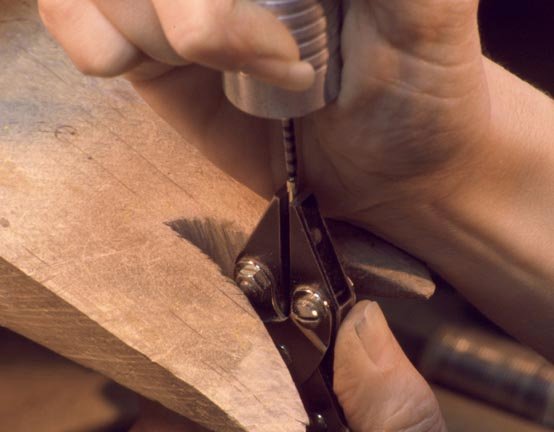

Step 16
Step 16
Burring the tube before setting the diamond.
Step 17
Step 17
Tube-setting the diamond.
Step 18
Step 18
Forming the gold balls.

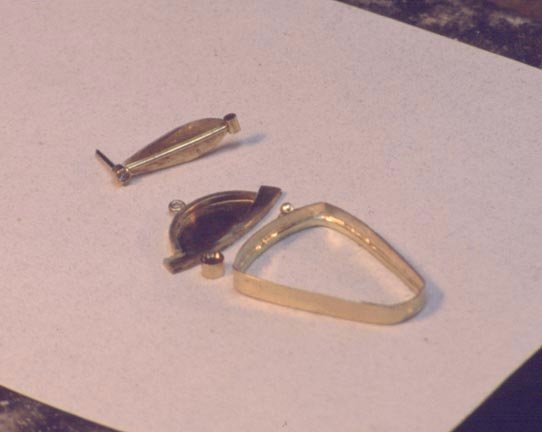

Step 19
Step 19
Assembling the gold pieces.

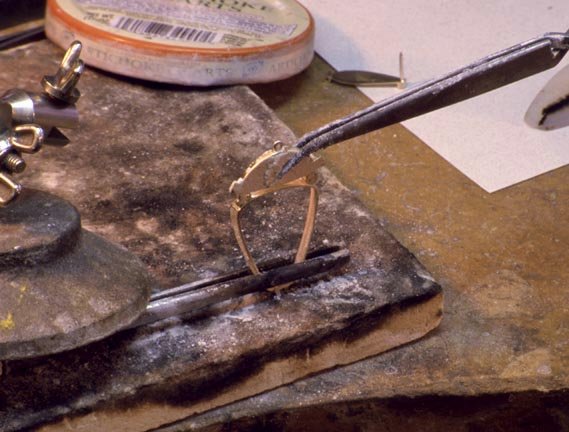

Step 20
Step 20
Soldering top to bottom.
Step 21
Step 21

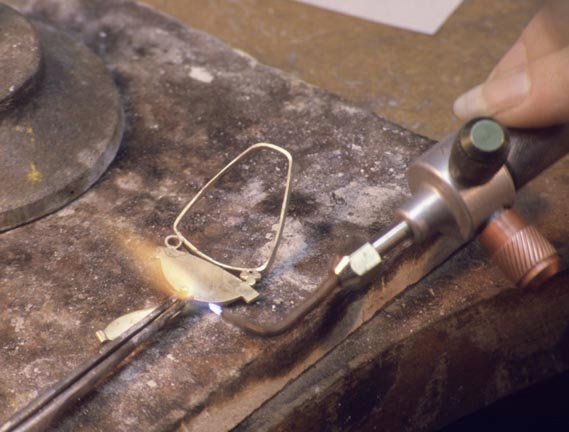

Attaching the bail.

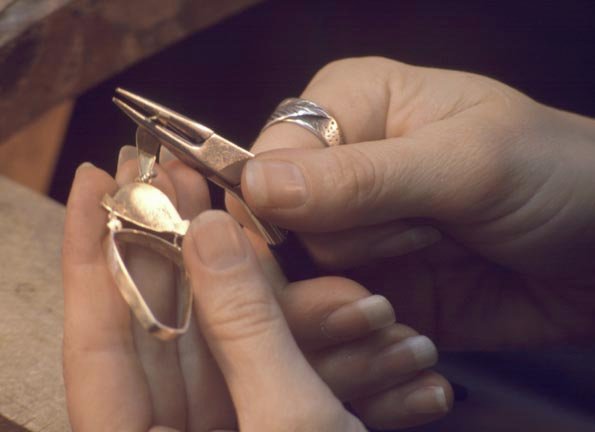

Step 22
Step 22
Folding the bail into position.
Step 23
Step 23

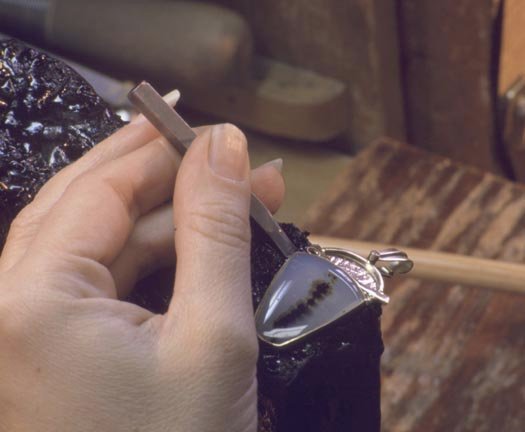

Setting the agate and the garnet in the bezels.

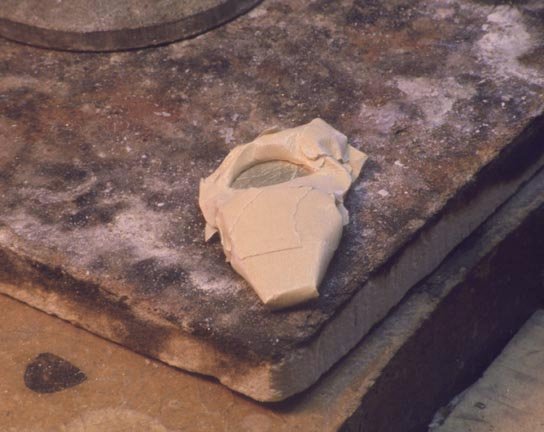

Step 24
Step 24
Masking polished areas and stones to protect them from sandblasting.
Step 25
Step 25

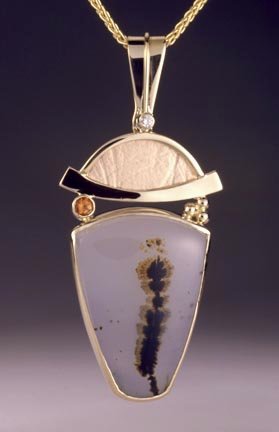

The finished pendant.
